Equipment configuration

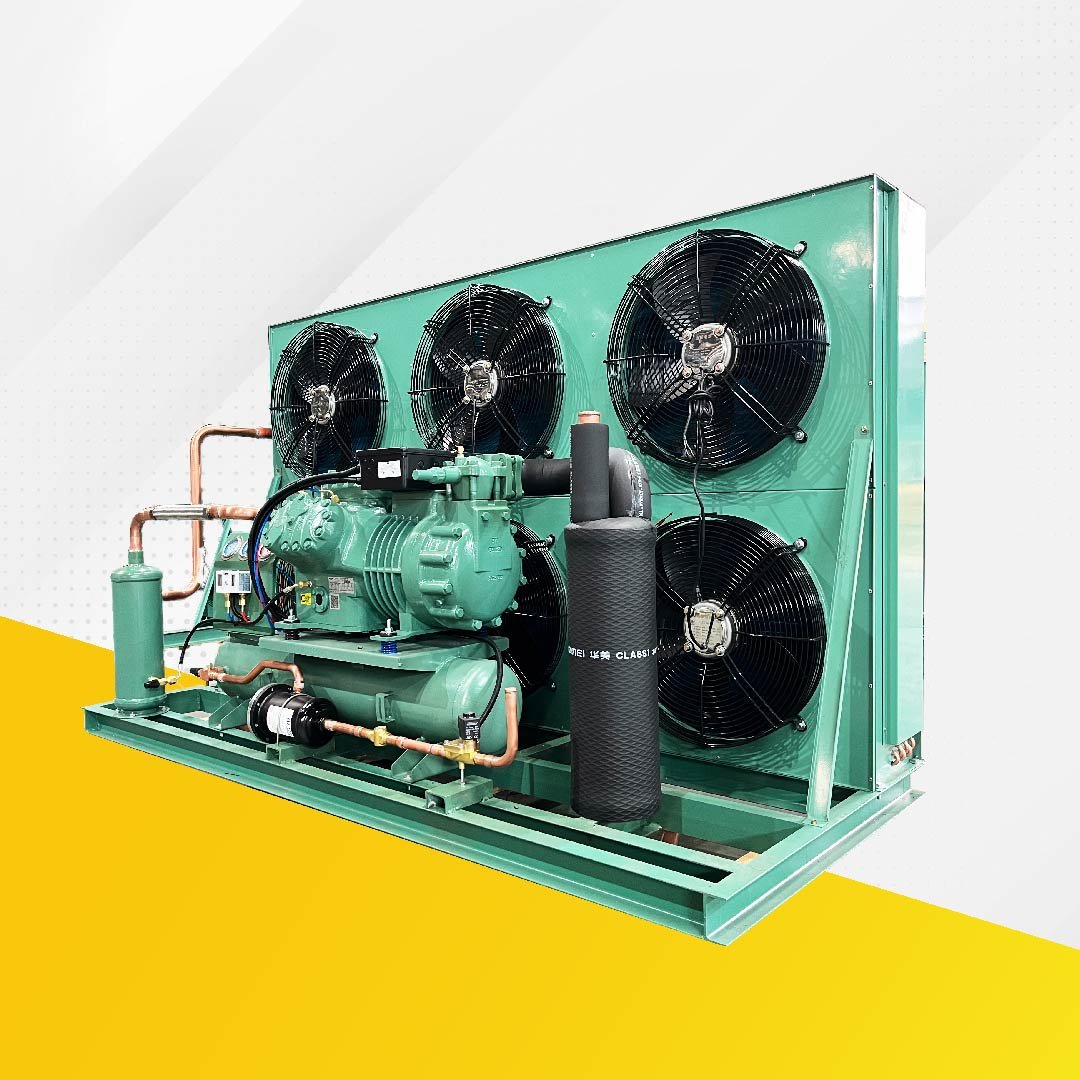

This product route covers an open-frame air-cooled condensing unit using a Bitzer reciprocating compressor. Mechocool coordinates the unit selection around the connected refrigeration duty. The open arrangement makes equipment layout and access important considerations when planning the installation area.
Application and selection
For a cold room or another refrigeration application, provide the duty and the proposed evaporator information. State whether the equipment will operate in a sheltered location and describe ambient conditions around the condenser.
- Cooling requirement and evaporating conditions
- Refrigerant, ambient basis and electrical supply
- Evaporator arrangement and approximate connection route
- Space available for equipment and maintenance
Quotation deliverables

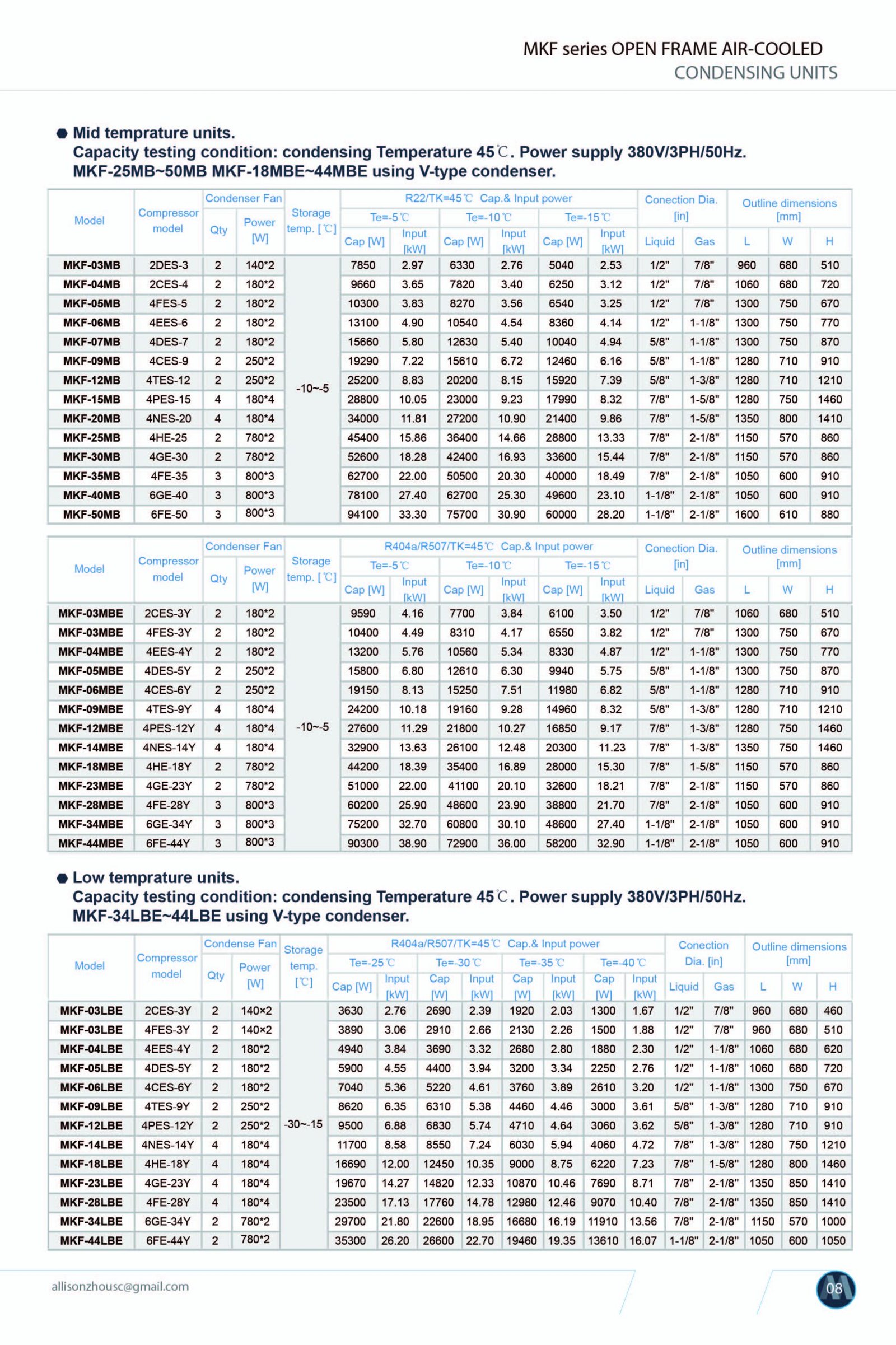

The quotation should identify the compressor, condenser and included controls, together with selected operating data. Request a general arrangement drawing and an accessory list showing field-supplied items. Any weather protection, support structure or site enclosure must be addressed by the responsible party without obstructing the required condenser airflow.
Nomenclature
Related project information
Send your refrigeration duty and installation arrangement.
