Application and arrangement

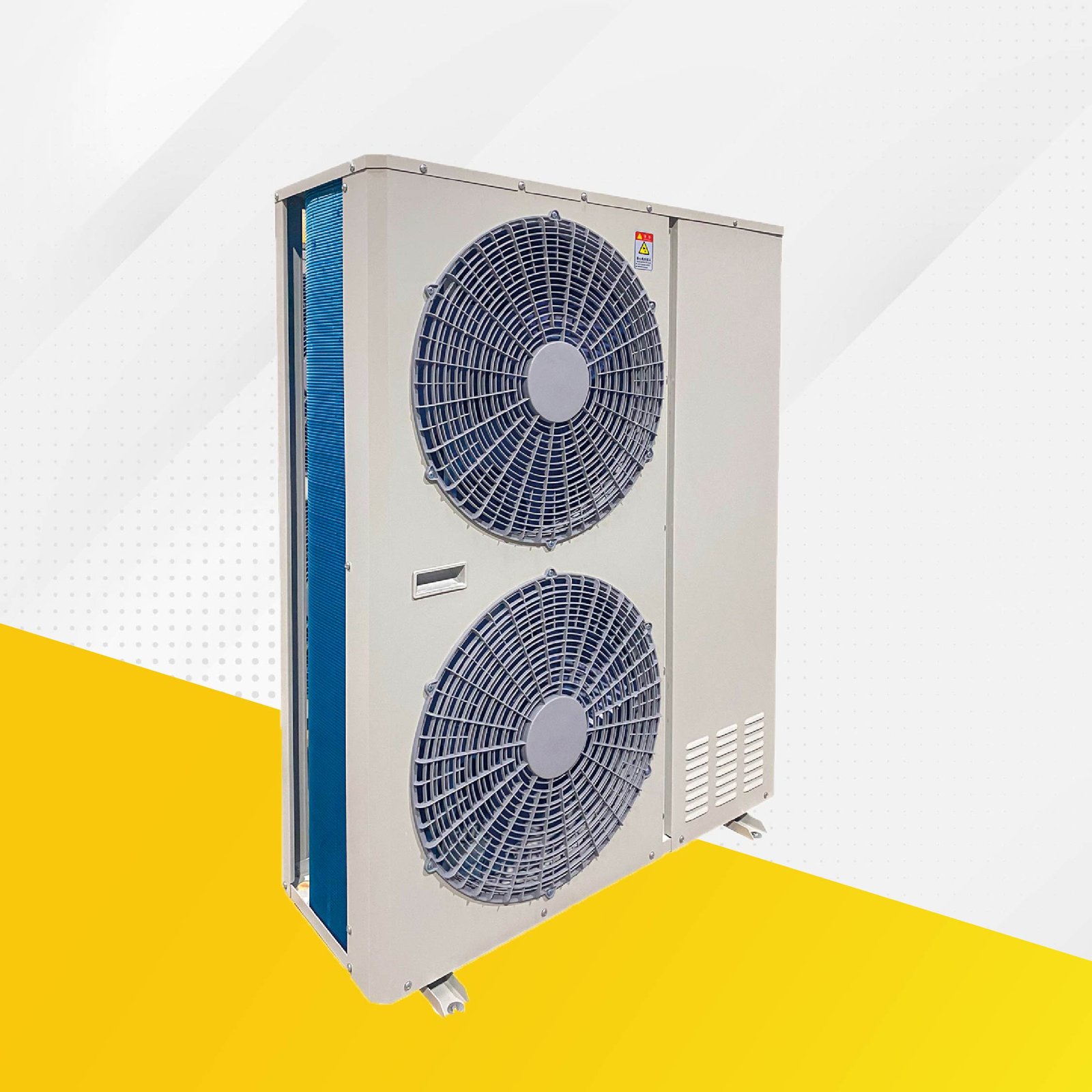

This housed condensing unit configuration uses a Copeland scroll compressor and a side-discharge arrangement. Mechocool reviews it for a defined refrigeration duty and installation space. The direction of condenser airflow is an important layout input where equipment is positioned near walls or other services.
Selection inputs
Share the required cooling duty and the equipment connected to the unit. Include a sketch showing the available side clearance and where discharged air can move away from the installation.
- Refrigerant, evaporating conditions and ambient design basis
- Evaporator details and connection route
- Electrical supply and installation exposure
- Service access and any site sound requirement
Review before ordering
The proposal should identify the configured unit, selected performance and supplied control components. Confirm the location of service panels and refrigeration connections on the arrangement drawing. Sound performance and enclosure protection should be supported by the selected supplier documentation, rather than inferred from the compact housing or compressor type.

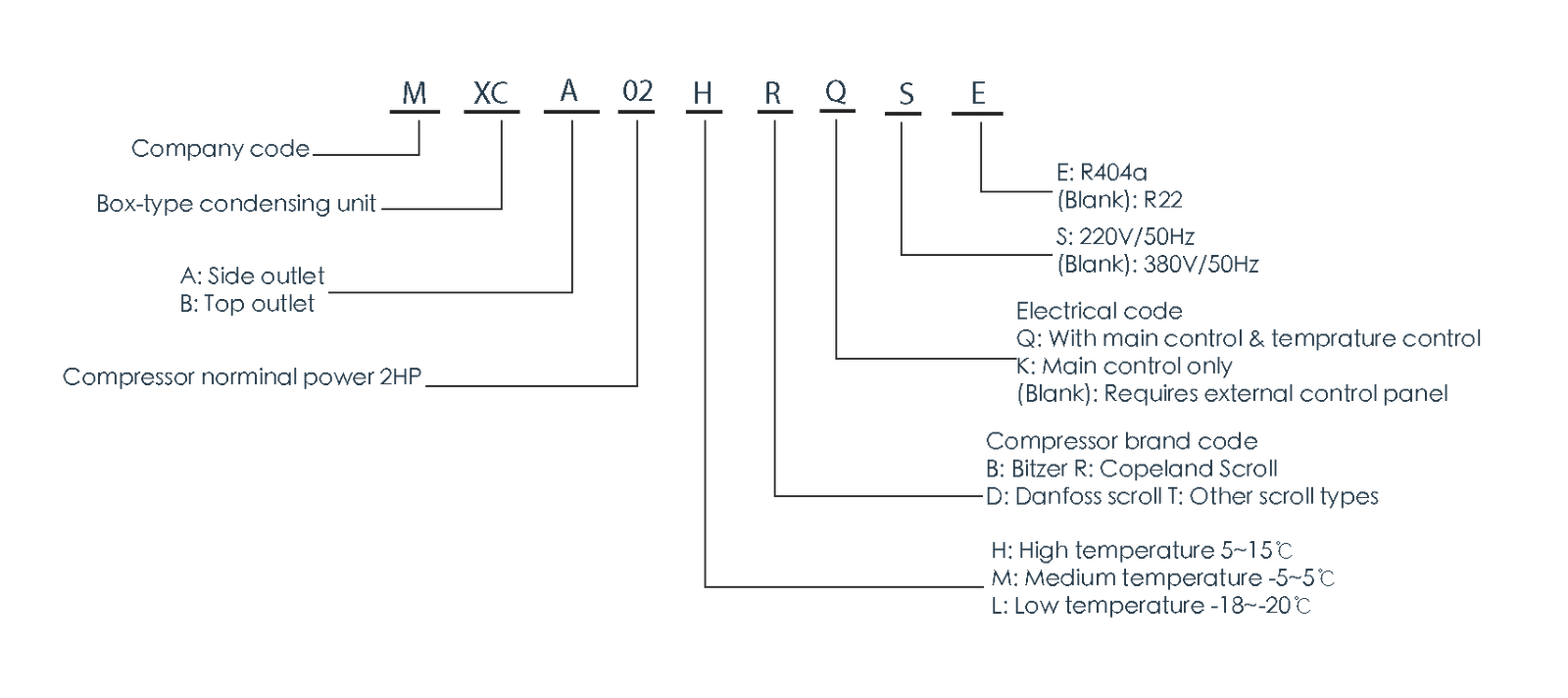

Nomenclature

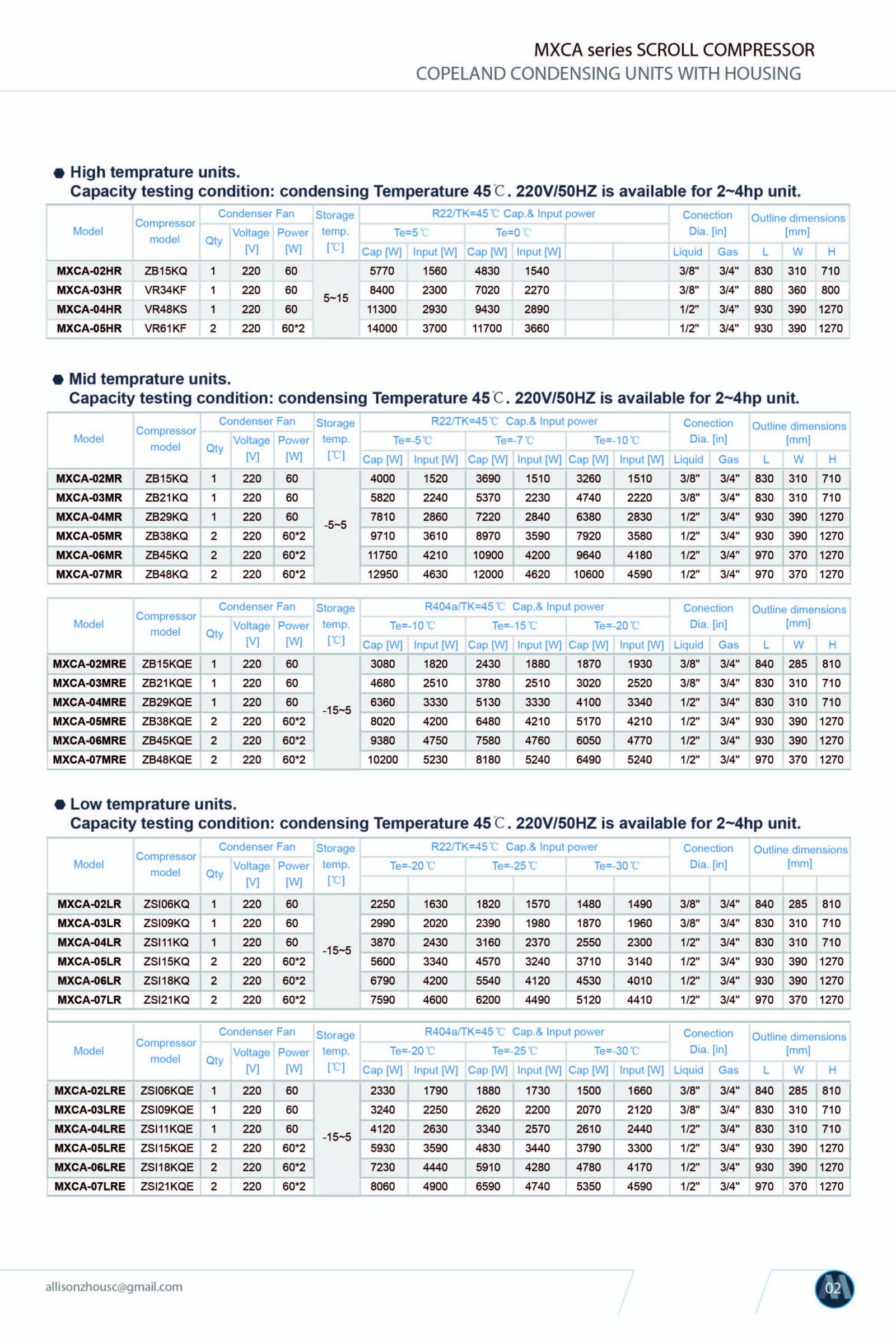

Product Specification
Related project information
Share your cooling duty and side-clearance layout.
